REST API

REST API with Spring Boot

Basic

A way for software systems to communicate over the web using standard HTTP methods

CRUD: Create, Read, Update, Delete - the basic database operations

HTTP Methods

HTTP Method	Action	Description
POST	C: Create	Add a new resource
GET	R: Read	Fetch data (no changes)
PUT	U: Update	Replace an existing resource
PATCH	U: Update partially	Modify part of a resource
DELETE	D:Delete	Remove a resource

REST endpoints example

URL	Method	Meaning
/users	GET	Get all users
/users/5	GET	Get user with ID 5
/users	POST	Create a new user
/users/5	PUT	Update user 5 completely
/users/5	DELETE	Delete user 5

Spring Data Naming Conversion

IMPORTANT: Spring Data naming conversion for entity and field names

Converting To SQL tables and columns: converted to snake_case

Entity: EmailAddress → email_address

Alter with @Table(name = "email-address")

Field: firstName → first_name

Alter with @Column(name = "first-name")

Converting To JSON keys: converted to camelCase

Entity: EmailAddress → emailAddress
Field: firstName → firstName

Alter with @JsonProperty("first-name")

Converting To API endpoints: converted to pluralized camelCase

Entity: EmailAddress → emailAddresses

Alter with @RepositoryRestResource(path = "emails") for JPA repository
Alter with @RequestMapping("/emails") for controllers

SQL Naming Conventions

Entity/Tables are normally singular; title | image

The user table is an exception and should be users because user is an sql keyword

Relation Tables are defined by their relation

One-to-Many: title_translation
Many-to-Many: images_tags

Using Spring Data JPA & REST

Spring Data JPA removes boilerplate code for database operations by automatically making CRUD operations by mapping the entities to the SQL tables

Flow of operations: HTTP Request → Controller → Service → Repository → Database

dependency: spring-boot starter-data-jpa
Use for purely accessing databases, but does not automatically generate REST endpoints

Spring Data REST automatically exposes REST endpoints for entities managed by Spring Data JPA

dependency: spring-boot starter-data-rest
Automatically generates the following REST endpoints for entities managed by Spring Data JPA

GET /{entities}: returns all entries in the table
GET /{entities}/{id}: returns a specific entry by ID
POST /{entities}: creates a new entry in the table
PUT /{entities}/{id}: updates an existing entry in the table based on ID
DELETE /{entities}/{id}: deletes an existing entry in the table

The software Postman can be used to testout API endpoints

Basic configuration for application.properties file:

# Handle connecting to MySQL database with the given username and password on localhost:3306/database_name
spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver
spring.datasource.url=jdbc:mysql://localhost:3306/full-stack-ecommerce?useSSL=false&useUnicode=yes&characterEncoding=UTF-8&allowPublicKeyRetrieval=true&serverTimezone=UTC
spring.datasource.username=username
spring.datasource.password=password

# Tells how Hibernate handles database schema generation. Options: none, validate, update, create, create-drop
spring.jpa.hibernate.ddl-auto=none

# Set the base path for the REST endpoints to /api; for example. localhost:8080/api/{entities}
spring.data.rest.base-path=/api

# allow jackson parser to process comments in payload
spring.jackson.parser.allow-comments=true
# application logging level
logging.level.org.springframework=INFO

Entities

Entities are the classes that represent the database tables with the following annotations

@Entity: marks the class as an entity

JPA, by default, maps the class name to the table name by converting CamelCase to snake_case: UserAccount > user_account

@Table: specifies the table name in the database
@Id: marks the primary key field
@GeneratedValue: specifies how the primary key is generated

GenerationType.IDENTITY: auto-incremented primary key

@Enumerated(EnumType.STRING): specifies that a field is an enum and will be sent as a string to SQL and in the JSON response
@Column: specifies the column name in the database or else it maps to the field name

JPA maps the field name to the column name by converting CamelCase to snake_case: firstName > first_name, but the JSON will use the field name as is
Every columns in a table must be mapped to a field either implicitly or explicitly using name option

// Field in entity class
@Id
@Column(name = "customer_id")
private Long id;

// JSON representation
{
  "id": 1
}

Relationships:

@ManyToOne: specifies a many-to-one relationship
@OneToMany: specifies a one-to-many relationship
@OneToOne: specifies a one-to-one relationship
@JoinColumn: specifies the foreign key column

name should be the same as the foreign key column in current table that links to the parent entity
Given to the field in the child entity that references the parent entity
Usually given to the "many" side in many-to-one or the child in one-to-one relationships

mappedBy:

Given to the field in the parent entity that represents the child entity
The value is the name of the field in the child entity that references back to the parent entity

@ManyToMany: specifies a many-to-many relationship

@JoinTable: in many-to-many relationships, @JoinTable is used on one side to specify the join table that owns the relation while the other side uses only @ManyToMany

IMPORTANT:annotation should be given to the entity side that gets updated/inserted
For many-to-many relationships, cascade options:

No cascade options if the relation is reference-lookup relation or shared entities
Use cascade = { CascadeType.PERSIST, CascadeType.MERGE } if dynamically creating relations

In both cases, JPA will automatically delete the entries in the row table if the row in the parent table is deleted

Example: in images-tags join table, if an image is deleted, the associated rows in the join table are automatically deleted regardless of cascade setting

However, when JPA tries to insert in one side and the other side is missing the entry, then JPA will not create a row in the join table

Example: in images-tags join table, if a tag is missing when inserting an image, JPA will not create a row in the join table unless CascadeType.PERSIST is true

name: specifies the name of the join table
joinColumns: specifies the columns in the join table that reference the parent entity
inverseJoinColumns: specifies the columns in the join table that reference the child entity

Cascade: specifies what operations are cascaded from the parent entity to the child entities

given to the parent side of the relationship
CascadeType.ALL: all operations are cascaded
CascadeType.PERSIST: persist operation is cascaded
CascadeType.MERGE: merge operation is cascaded
CascadeType.REMOVE: remove operation is cascaded

@CreatedDate: marks a field to be automatically set to the current date when an entity is created
@CreationTimestamp: marks a field to be automatically set to the current timestamp when an entity is created
@UpdateTimestamp: marks a field to be automatically set to the current timestamp when an entity is updated
@JsonProperty("customName"): add a custom field to be returned in the JSON response

Example:

@JsonProperty("country_id")
public Long getCountryId() {
    return country != null ? country.getId() : null;
}

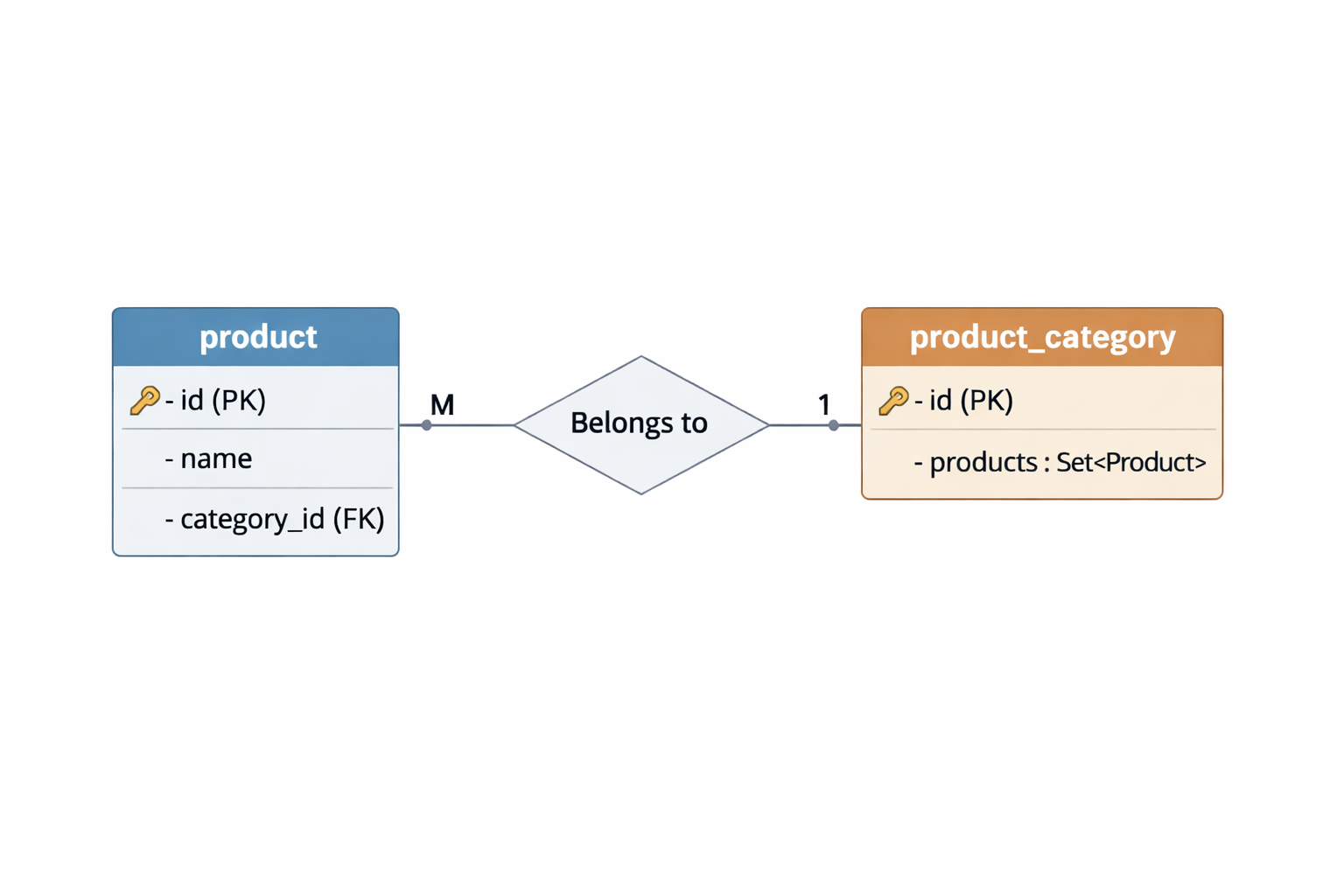

Many-to-One Example:

@Entity
@Table(name = "product")
@Data // lombok annotation for getters, setters, toString, equals, and hashCode
public class Product {
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    @Column(name = "id")
    private int id;

    private String name;

    // Many-to-one relationship: Product belongs to one ProductCategory
    @ManyToOne
    @JoinColumn(name = "category_id", nullable = false) // Foreign key column in the Product table
    private ProductCategory category;

    // Constructor
    public Product() {}

    public Product(String name, ProductCategory category) {
        this.name = name;
        this.category = category;
    }
}
--------------------------------------------------------
@Entity
@Table(name = "product_category")
@Data // lombok annotation for getters, setters, toString, equals, and hashCode
public class ProductCategory {
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private int id;

    @OneToMany(mappedBy = "category", cascade = CascadeType.ALL, fetch = FetchType.LAZY)
    private Set<Product> products = new HashSet<>();

    // Constructor
    public ProductCategory() {}

    public ProductCategory(int id) {
        this.id = id;
    }
}

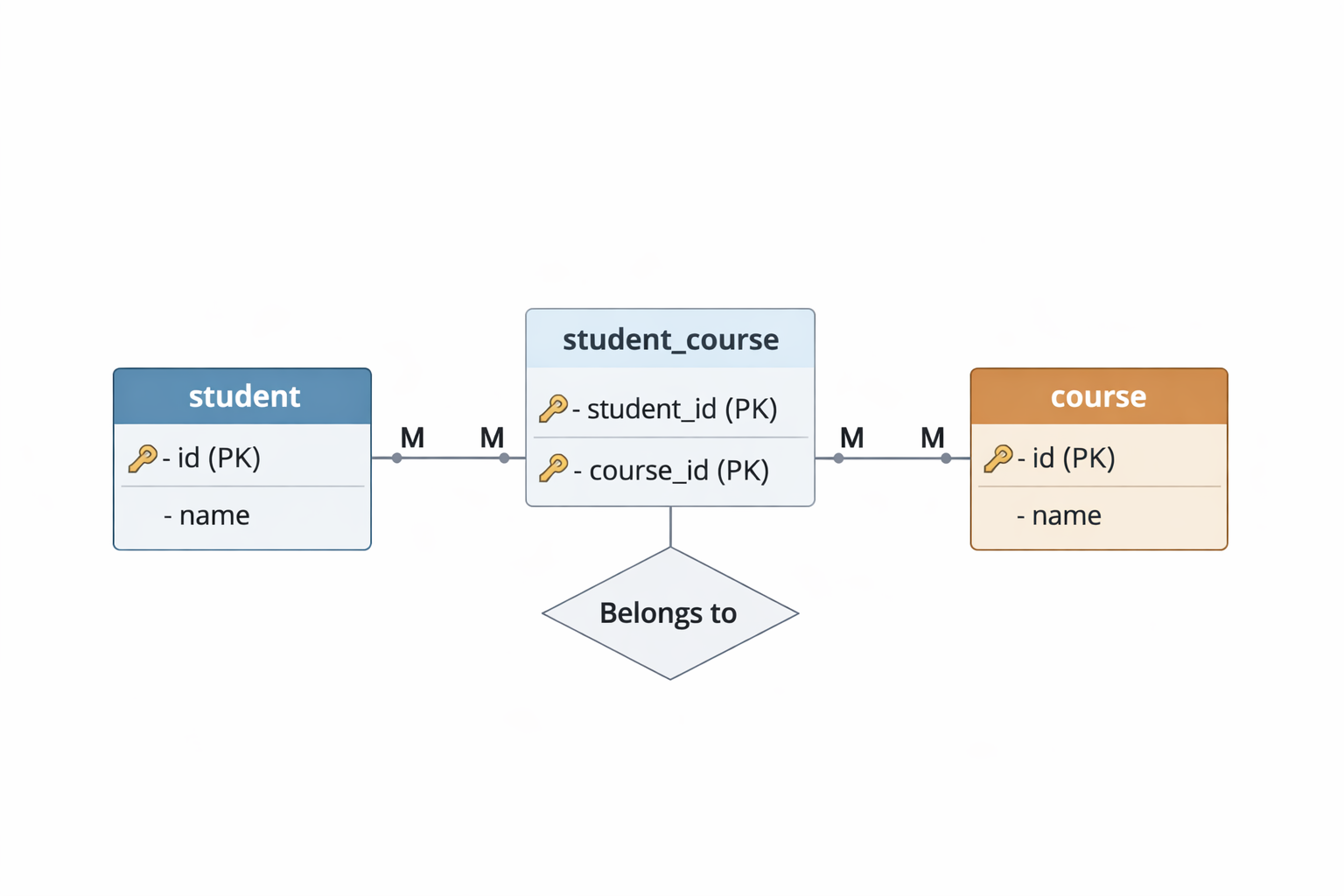

Many-to-Many Example:

@Entity
@Table(name = "student")
public class Student {
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;

    private String name;

    @ManyToMany
    @JoinTable(
        name = "student_course",
        joinColumns = @JoinColumn(name = "student_id"),
        inverseJoinColumns = @JoinColumn(name = "course_id")
    )
    private Set<Course> courseSet;
}
--------------------------------------------------------
@Entity
@Table(name = "course")
public class Course {
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;

    private String name;

    @ManyToMany(mappedBy = "courseSet")
    private Set<Student> students;
}

JPA & REST Repository

When combined with spring-boot-data-rest, JPA repositories are automatically exposed as REST endpoints.

To use the JPA repository, an interface must extends the JpaRepository<{entity class},{primary key type}> while following the {entity}Repository naming convention
@RepositoryRestResource: marks a JPA repository to be exposed as a REST endpoint by the spring-boot-data-rest; the following endpoints are exposed:

The endpoints will be the repository name, but lowercase and in plural form (Ex: CountryRepository > countries)
Setting @RepositoryRestResource(exported = false) prevent endpoints from being auto-generated so this repository can only be used to connect to the DB
GET /{entities}: returns all entries in the table
GET /{entities}/{id}: returns a specific entry by ID
POST /{entities}: creates a new entry in the table
PUT /{entities}/{id}: updates an existing entry in the table based on ID
DELETE /{entities}/{id}: deletes an existing entry in the table
Customizing the REST endpoints

@RepositoryRestResource(path = "custom-path"): changes the path of the REST endpoints to /custom-path
@RepositoryRestResource(collectionResourceRel = "custom-json-name"): changes the default name of the collection in the JSON response
@RepositoryRestResource(itemResourceRel = "custom-json-item-name"): changes the default name of the item resources in the JSON response
@RepositoryRestResource(exported = false): disables the REST endpoints for the repository

@CrossOrigin: allows cross-origin requests to the REST endpoints exposed by a JPA repository

@CrossOrigin(origins = "http://localhost:3000:"): allows cross-origin requests from only localhost:3000
@CrossOrigin("*"): allows cross-origin requests from any origin

JPA can automatically generate SQL based on the method name in the repository interface

Example: findById(value) generates SQL to find entities by a specific id value

@RepositoryRestResource
@CrossOrigin("*")
public interface OrderRepository extends JpaRepository<Order, Long> { }

// The above repository will expose the following REST endpoints:
// GET /orders
// GET /orders/{id}
// POST /orders
// PUT /orders/{id}
// DELETE /orders/{id}

Custom Query Methods

JPA repositories support custom query methods for your services or custom endpoints by automatically generating SQL based on method names or using the @Query annotation with a custom SQL query

Method Name Queries:

JPA uses a base name + the entity's field name and certain keywords to generate SQL queries
The default endpoints created are base + /plural-repository-name/search/{method-name}

Example endpoints of a UserRepository:

Method: findByEmailAddressContaining(String emailAddress)

URL: /users/search/findByEmailAddressContaining?emailAddress=example@example.com

Method: countByIsActiveFalse():

URL: /users/search/countByIsActiveFalse

Base: findBy | readBy | getBy | queryBy | countBy | existsBy | deleteBy
Keywords: And | Or | Not | IsNull | IsNotNull | Between | LessThan | GreaterThan | Like | True | False
For nested fields, JPA can also figure out based on the method name

@Entity
public class Order {
    @ManyToOne
    private User user;
}
---------------------------------------------------------
@Entity
public class User {
    @Column(name = "email_address")
    private String emailAddress;   // ✅ Java field uses camelCase

    @Column(name = "active")
    private boolean isActive;
}
---------------------------------------------------------
// Simple fields example for User entity

@RepositoryRestResource
public interface UserRepository extends JpaRepository<User, Long> {

  List<User> findByEmailAddressContaining(String emailAddress); // WHERE email_address LIKE '%emailAddress%'

  List<User> findByIsActiveTrue();    // WHERE active = true

  long countByIsActiveFalse();        // COUNT WHERE active = false; return the number of rows in DB with isActive = false

  boolean existsByIsActiveTrue();     // EXISTS WHERE isActive = true; if any row in DB exists with isActive = true, return true, else false
}
---------------------------------------------------------
// Nested fields example for Order.user entity

@RepositoryRestResource
public interface OrderRepository extends JpaRepository<Order, Long> {

  List<Order> findByUserEmailAddress(String emailAddress); // WHERE user.email_address = ?
}

Using @Query with JPQL queries:

Allows you to write custom JPQL queries for repository methods
JPQL queries the Java entities and fields, not the SQL table and column names

@Query("SELECT u FROM User u WHERE u.age > :age") // SELECT User entity WHERE User.age is greater than the given age parameter(:age)
List<User> findUsersOlderThan(@Param("age") int age);

Using @Query with raw SQL queries:

Raw SQL queries can be used by adding the argument nativeQuery = true
JPA will query the table and column as defined in the raw query

@Query(value = "SELECT * FROM users u WHERE u.user_age > :age", nativeQuery = true) // JPA will query the "users" table and "user_age" column as defined in the raw SQL query
List<User> findUsersOlderThanNative(@Param("age") int age);

Services and Controller

When using JPA repositories with spring-boot-data-rest, the services and controllers are automatically generated for the basic CRUD endpoints

However, to handle custom logic, @Service and @RestController classes are needed

@Service: marks a class as a service and Spring bean that contains business logic

Holds, business rules and validations logic
@Transactional: marks a method, ensuring that all database operations within the method are part of a single transaction. Once marked, Spring make sure the all operations in the method succeeds or fails together and roll back the DB

repository.save(entity) or repository.saveAll(entities): methods to save entities to the database

@Service
public class OrderService {
    private final OrderRepository orderRepository;

    @Autowired
    public OrderService(OrderRepository orderRepository) {
        this.orderRepository = orderRepository;
    }

    @Transactional
    public void placeOrder(Purchase purchase) {
        purchase.getItems();
        ... // other business logic and validations
        orderRepository.save(purchase.getOrder());    // save order to the database
        orderRepository.saveAll(purchase.getOrders()); // save all orders in the purchase to the database in batch
    }

    @Transactional(readOnly = true)
    public Purchase getOrder(Long id) {
        // query for order by ID
        return orderRepository.findById(id).orElse(null);
    }
}

@RestController: marks a class as a REST controller that handles HTTP requests and returns JSON/XML responses

Every method returns JSON/XML responses and can be associated with custom endpoints for the REST API
Maps HTTP methods and routes
Handles request and response processing for the associated entity/table
@RequestMapping: define the base path for all endpoints in the controller/class
@GetMapping: maps a method to a GET endpoint
@PostMapping: maps a method to a POST endpoint
@PutMapping: maps a method to a PUT endpoint
@DeleteMapping: maps a method to a DELETE endpoint

@PathVariable: maps a method parameter to a path variable in the URL
@RequestParam: maps a method parameter to a query parameter in the URL
@RequestBody: maps a method parameter to the request body

@RestController
@RequestMapping("/api/order")
@Cross-Origin("*")
public class OrderController {
    private final OrderService orderService;

    @Autowired
    public OrderController(OrderService orderService) {
        this.orderService = orderService;
    }

    // Map a POST request to /api/order/purchase to the placeOrder method
    @PostMapping("/purchase")
    public PurchaseResponse placeOrder(@RequestBody Purchase purchase) {
        return orderService.placeOrder(purchase);
    }

    // Map a GET request to /api/order/{id} to the getOrder method
    @GetMapping("/{id}")
    public Purchase getOrder(@PathVariable Long id) {
        return orderService.getOrder(id);
    }
}

Pagination and Sorting

JPA can paginate the result so not all rows are loaded at once and sort the result as well

Hard Limit on Page Size:

By default, Spring Boot sets a hard limit of 1000 rows per page, but can be set with the following lines in application.properties:

spring.data.web.pageable.max-page-size=100
spring.data.web.pageable.default-page-size=20

Sorting:

Use the sort query parameter in the HTTP request to sort the results
Example: ?sort=emailAddress,asc

Pagination of HTTP requests:

Make the JPA repository methods return a Page<{entity}> and add a Pageable parameter to the method
Add Pageable parameter to the controller that handle HTTP request while including the default size and page number
Some example API endpoints with pagination

GET /api/users?page=0&size=10
GET /api/users?page=1&size=5&sort=age,desc

@Entity
public class User {
    @Column(name = "email_address")
    private String emailAddress;   // ✅ Java field uses camelCase

    @Column(name = "active")
    private boolean isActive;
}
---------------------------------------------------------
// Add pagination to the JPA repository methods

@RepositoryRestResource
public interface UserRepository extends JpaRepository<User, Long> {

  Page<User> findByEmailAddressContaining(String emailAddress, Pageable pageable); // WHERE email_address LIKE '%emailAddress%'

  Page<User> findByIsActiveTrue(Pageable pageable);    // WHERE active = true
}
---------------------------------------------------------
// Add pagination to the controller that handles the HTTP request

@RestController
@RequestMapping("/api/users")
@Cross-Origin("*")
public class UserController {

    private final UserRepository userRepository;

    @Autowired
    public UserController(UserRepository userRepository) {
        this.userRepository = userRepository;
    }

    // Map a GET request to /api/users?email=random@gmail.com
    @GetMapping
    public Page<User> findUsersByEmail(
      @RequestParam String email,
      @PageableDefault(size = 20, sort = "emailAddress") Pageable pageable) { // Spring autowires the Pageable parameter from the query params in the HTTP request

        return userRepository.findByEmailAddressContaining(email, pageable);
    }
}

Pagination of non-HTTP requests like scheduled job, batch process,CLI, internal service logic:

Normally used in a service class and not the controller
Create a PageRequest and pass that as the pageable

@Service
public class OrderService {
    private final OrderRepository orderRepository;

    @Autowired
    public OrderService(OrderRepository orderRepository) {
        this.orderRepository = orderRepository;
    }

    public Page<Order> checkOrdersStatuses(int pageNumber, int pageSize) {
        Pageable pageable = PageRequest.of(pageNumber, pageSize, Sort.by("createdAt").descending());
        return orderRepository.findByStatus("PENDING", pageable);
    }
}

CommandLineRunner

CommandLineRunner is a Spring interface that allows you to run code when the application starts up, after Spring finishes initializing. It behaves similarly to Runnable.

To make use of it, have a Component implements CommandLineRunner and override the run method.
Prep/admin tasks can be done in run() method

@Component
public class DataInitializer implements CommandLineRunner {

    private final UserRepository userRepository;

    public DataInitializer(UserRepository userRepository) {
        this.userRepository = userRepository;
    }

    @Override
    @Transactional
    public void run(String... args) {
        if (userRepository.count() == 0) {
           User admin = new User("admin");
           User user = new User("user");

           List<User> users = List.of(admin, user);
           userRepository.saveAll(users);
        }
    }
}

Enable HTTPS

Securing Front-End and Spring Boot server communication:

Get the cert and key: yourdomain.crt/fullchain.pem, yourdomain.key, and possibly intermediate.pem
Create a PKCS12 keystore that contains the cert and key for Spring Boot

The keystore can be replaced if using self-signed

openssl pkcs12 -export
  -in yourdomain.crt
  -inkey yourdomain.key
  -certfile intermediate.pem
  -name springboot
  -out keystore.p12

Configure Spring Boot to use the keystore in application.properties or application.yml:

server.port=8443
server.ssl.enabled=true
server.ssl.key-store=classpath:keystore.p12
server.ssl.key-store-password=yourpassword
server.ssl.key-store-type=PKCS12
server.ssl.key-alias=springboot

Change the front-end urls to HTTPS

Securing Spring Boot and MySQL server communication:

Enable SSL in Spring Boot application.properties or application.yml:
Keypoints:

useSSL=true: enables SSL for the connection
requireSSL=true: requires SSL for the connection
verifyServerCertificate=true: enables server certificate verification

spring.datasource.url=jdbc:mysql://localhost:3306/mydb?useSSL=true&requireSSL=true&verifyServerCertificate=true

spring.datasource.username=user
spring.datasource.password=pass

Obtain cert and keys for MySQL server: ca.pem, server-cert.pem, and server-key.pem
Edit my.cnf or my.ini and add under [mysqld] to enable SSL and restart server:

[mysqld]
ssl-ca=/path/to/ca.pem
ssl-cert=/path/to/server-cert.pem
ssl-key=/path/to/server-key.pem
require_secure_transport=ON   # forces TLS connections

Generating self-signed certificates for development:

Instruction to generate self-signed cert for keystores: Keystore Steps

Configuration

The RepositoryRestConfigurer interface allows you to customize the spring-data.

Basic Setup:

@Configuration
public class RestDataConfig implements RepositoryRestConfigurer {

    @Override
    public void configureRepositoryRestConfiguration(
      RepositoryRestConfiguration config, CorsRegistry cors) {
        config.exposeIdsFor(Product.class);
        config.setDefaultPageSize(Integer.MAX_VALUE);
        config.setMaxPageSize(Integer.MAX_VALUE);
        ... // other configurations
    }
}

Options:

.exposeIdsFor(...): exposes the IDs of the given entity classes in the REST endpoints
.setDefaultPageSize(...): sets the default page size for all REST endpoints
.setMaxPageSize(...): sets the maximum page size for all REST endpoints
.getExposureConfiguration(): returns the exposure configuration for the REST endpoints to be able to disable specific HTTP methods

//Example: Disabling specific HTTP methods for an entity

HttpMethod[] theUnsupportedActions = {HttpMethod.PUT, HttpMethod.POST, HttpMethod.DELETE, HttpMethod.PATCH};

// disable HTTP methods for Product: PUT, POST, DELETE and PATCH
config.getExposureConfiguration()
    .forDomainType(Product.class)
    .withItemExposure((metdata, httpMethods) -> httpMethods.disable(theUnsupportedActions))
    .withCollectionExposure((metdata, httpMethods) -> httpMethods.disable(theUnsupportedActions));

Common Errors

@Data annotation of Lombok can generate error when placed on Entity classes so it should be replaced with @Getter and @Setter annotations individually.

Production

Steps to bring Spring Boot to deployment in server:

Compile/Build the Spring Boot project into a JAR file

Using Maven: mvn clean package

the .jar file is generated in the target directory like springboot-0.0.1-SNAPSHOT.jar

Using Gradle: ./gradlew build

the .jar file is generated in the build/libs directory like springboot-0.0.1-SNAPSHOT.jar

Setup the server and copy JAR file over:

Install Java 17 on the server: sudo apt install openjdk-17-jdk -y
Copy the JAR file to a non-root directory on the server:
scp target/springboot-0.0.1-SNAPSHOT.jar user@server-ip:/home/user/

Setup a service to run the JAR file:

Create a service file: sudo nano /etc/systemd/system/springboot.service with the following content

[Unit]
Description=My Spring Boot Application
After=network.target

[Service]
User=youruser
ExecStart=/usr/bin/java -jar /home/youruser/springboot-0.0.1-SNAPSHOT.jar
Restart=always

[Install]
WantedBy=multi-user.target

Reload the config file: sudo systemctl daemon-reload
Start the service: sudo systemctl start springboot.service
Enable the service to start on boot: sudo systemctl enable springboot.service
Check the status of the service: sudo systemctl status springboot.service
Check the logs of the service: sudo journalctl -u springboot.service
By default, the spring boot app runs on port 8080

Optional: set up reverse proxy with Nginx or Apache to access app on a different port or domain

Install Nginx: sudo apt install nginx -y
Create the config file: sudo nano /etc/nginx/sites-available/springboot.conf

# Nginx sample configuration
server {
    listen 80;
    server_name mydomain.com;

    # define the API endpoints that this block handles
    location / {
        # apply rate limit only if $limit_bypass is 1
        limit_req zone=api_limit burst=10 nodelay if=$limit_bypass;

        # Forward requests to port 8080
        proxy_pass http://127.0.0.1:8080;

        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
    }
}

Test the Nginx configuration for errors: sudo nginx -t
Enable the Nginx site:
sudo ln -s /etc/nginx/sites-available/springboot.conf /etc/nginx/sites-enabled/
Reload Nginx: sudo systemctl reload nginx
